Spot-Cure Series – Spot UV Curing Equipment

The latest model of the Spot-Cure Series, the SP-9, features optical system technologies that we have developed over approximately 30 years.
A low-attenuation lamp with a high power of 250W enables an input of 200W. The unit can be installed in both vertical and horizontal positions, with an emphasis on usability. This is an environmentally friendly system designed to minimize environmental impact. The deep UV lamp is used as the light source, and the unit features a wide range of options, such as lenses and units, in accordance with status of the lines and workpieces.

Characteristics

Lamp power switch function

The unit is equipped with a function to switch lamp power (200W/250W) to increase the degree of freedom for the irradiance setting. If high illumination is unnecessary, switching to 200W reduces power consumption by approximately 20% compared to the 250W setting.

Environmental friendliness

All PC boards in the SP-9 are free of lead. User manuals (in Japanese, English and Chinese) are also distributed on CD-ROM.

Lamp replaceable from either side

It is possible to replace a lamp from either the left or right side of the cabinet. This facilitates replacement without the need to move the cabinet.

Pursuit of usability

The operator panel on the SP-9 has been improved from the flat panel on the SP-7 to increase user friendliness. In addition, the feature that allows installation of the unit in either a vertical or horizontal position has proven popular among users and has been retained in this unit as well. This feature also enables the unit to be easily relocated from its installation site.

Operable at any voltage

The SP-9 automatically handles input voltages ranging from AC90V to 264V. No modification or switching is required when the unit is used overseas.

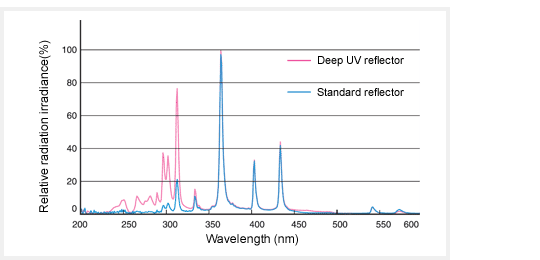

Spectral irradiance

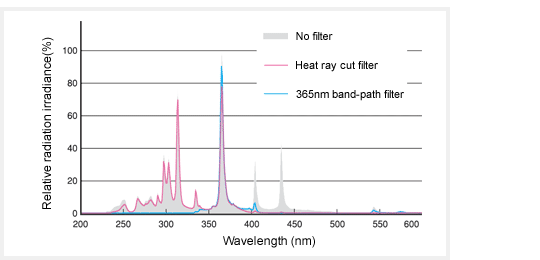

Spectral absorption of each filter

Major Applications

Adhesion of the light pick-up lens
Adhesion of each lens
Adhesion of other electronic components
Adhesion of optical communication components
For medical applications
Research purposes

For further information, please contact:

Tokyo Tel: +81 3-6361-5593 or 5590, Fax: +81 3-6361-5599
Taiwan Tel: +886 2-2322-4103, Fax: +886 2-2394-4140
Singapore Tel: +65 6274-5311, Fax: +65 6274-5300
Shanghai Tel: +86 21-6841-1135, Fax: +86 21-6841-1150
Korea Tel: +82 2-587-1115, Fax: +82 2-587-1118
