High power multi-color laser module NEON BOX

High power multi-color laser module NEON BOX
  • Imaging
  • Biology and Chemistry
  • Therapy, Cosmetics, and Pharmaceutical Development
  • Illumination

This versatile and reliable laser light source achieves up to 12 W white light output with no color shift and a lifespan of more than 10 years.*
Select single or consolidated operation of multiple units to emit a variety of colors. A unique feature of this "laser neon" is that the light can be coupled to transmission fiber, and by taking advantage of this feature, the light source can be located at a distance from the actual illumination target, enabling use in places too hazardous to enter, underwater, and for large-scale landscape lighting.
In addition, safety features are included so that anyone can use the laser simply by loading the standard GUI-USB interface or DMX controller.
* Depending on temperature conditions and derating.

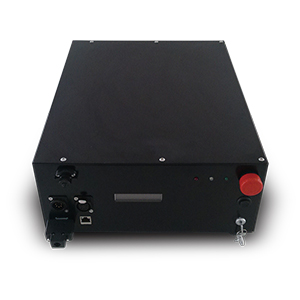

A high power multi-color laser module in a standalone compact package that drives an RGB laser.
Installation in locations away from light sources is possible
Couples low light-transmission losing glass fiber.
As a result, the light source unit can be located at a distance from the actual illumination target, enabling use in places too hazardous to enter, underwater or for surface lighting.
High output
12 W maximum output
Long lifespan
Achieves superior output stability through automatic laser temperature control and a light source lifespan of 20,000 hours without color shift
Specifications
Red Green Blue
Center wavelength (nm) 658/638 523 465
Output (W) 6.0 2.5 3.5
Dimming Current dimming / PMW dimming
Current + PMW dimming possible
External interface DMX512 / Ethernet
Operability DMX controller / GUI (PC) allows easy operation
Output fiber Connector: SMA-905
Core diameter: 1.0 mm, NA: 0.39
Dimensions/Weight W315 x L390 x H135 mm / 8.7 kg
Safety Acquisition plan for laser safety standard IEC60825-1
Installation of safety key switches, warning lights, remote interlocks, emergency stop buttons, opened housing detection, fiber disconnection detection and various other safety interlocks
* Depending on temperature conditions and derating.
Dimensions
34.8 × 10.9 × 33.3 (cm)
Hazard zone lighting
Underwater and under-ice lighting
Landscape lighting
Lighting under hazardous environments
Lighting for inhospitable areas and more

Installed light source
