High power multi-color laser unit Novalum

High power multi-color laser unit Novalum
  • Inspection
  • Imaging
  • Biology and Chemistry
  • Video and Cinema
  • Illumination

From a 400 μm diameter fiber core, packages provide 250 or 700 white balanced lumens from red, green and blue lasers with user-selectable UV and infrared wavelength regions output in a single package choice.
In addition, the Necsel Intelligent Controller enables any color to be represented by adjusting color balance. Also equipped with temperature feedback and high-speed modulation, it's multi-functionality suits a wide range of applications and systems.

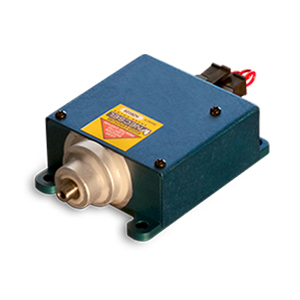

"Novalum" high power multi-color laser light source
A high power multi-color laser light source with multiple wavelength lasers in a compact package that is capable of outputting mixed colors. The optional dedicated driver (Necsel Intelligent Controller) allows independent dimming, temperature monitoring and high-speed modulation.
RGB NovaLum
A light source unit with a compact installation of red, green and blue lasers, and that is capable of 250/700/1200 lm white light output.
The dedicated driver (Necsel Intelligent Controller) enables any color to be represented since colors can be independently dimmed.
Also equipped with temperature feedback and high-speed modulation that suits a wide range of applications and systems.
IR-RGB-V NovaLum
This light source unit compactly packages UV, red, green, blue and infrared lasers
Cusome NovaLum
We also offer custom wavelength selections to suit your needs.
Wavelength λp (nm) Output
100 mW 500 mW 1 W 5 W 10 W >10 W
375
405
445
465
490
525
635
730
>800
Dimensions
250 lm model: 87 × 55 × 26 (mm)
700 lm model: 139 × 55 × 29 (mm)
Digital projectors
Remote lighting
Hazard zone lighting
Theme park attractions
Forensics
Medical
Therapy and more

Attachment Developer's Kit
This kit includes a controller, power cable, USB cable, interlock and Windows GUI for RGB control of each color output (CW or pulse) provided by the Necsel Intelligent Controller, of course, with a variety of drive modes including sequential operation of each color output, synchronous triggering (both input and output possible) and variable pulse frequency/duty cycle. It also features temperature measurement feedback and anti-ESD protection.

Installed light source
