Wire Grid Polarizing Plates Inorganic UV polarizer for use in the deep ultraviolet region Achieves large surface area, high performance and great durability.Does not degrade;
its functionality does not deteriorate even if the surface is touched
·UV polarizer
·Our UV polarizers are absorption-type polarizers that are suitable for reducing scattering light.
·The polarizer's surface structures are covered with a protective film,
thus protecting it from damage caused by touch.
·Ultra fine scale microfabrication achieves high transmission and high extinction ratios.

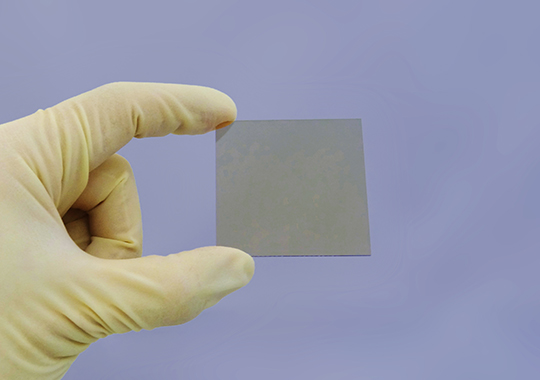

External appearance of wire-grid polarizing plate

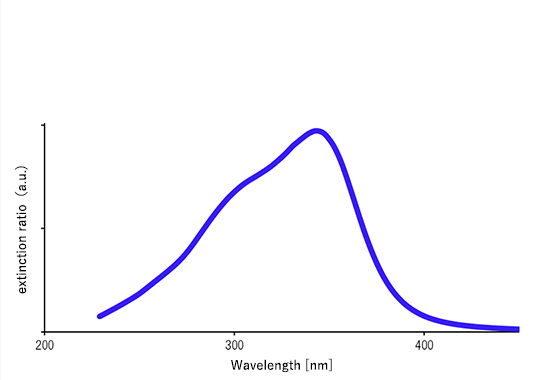

Extinction ratio characteristics of Wire-grid polarizing plates

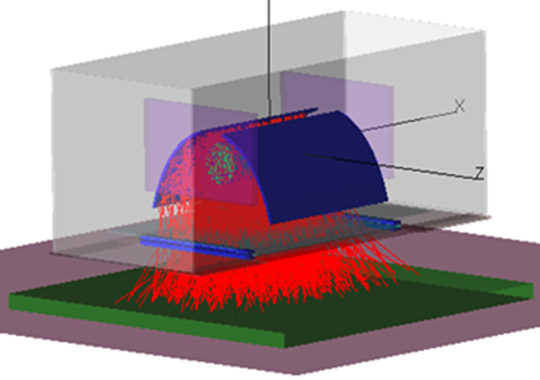

It can be optimize a polarization uniformity on workpiece's surface in combination with light source by computer simulation.| Item | Details | |
|---|---|---|
| Optical characteristics | In-plane variation | ±10% |
| Polarization wavelength | 365nm | |
| type | Linear polarization | |
| Incident angle | 0°～60° | |
| Clear aperture | EE5mm | |
| Shapes | Dimensions | * Please contact us. |
| Thickness | 0.72mm | |
| Operating environment | Temperature | 400℃ or lower |
| Humidity (no condensation) | Less than 70% RH |
