Ushio's UXR™ series xenon lamps have been developed based on our proprietary optimized design, using ceramic and sapphire as primary components to provide excellent resistance to impact and pressure. Major lamp features are compact size and light weight, with an integrated mirror to efficiently extract the exceptional color rendering properties of the light while eliminating the need for troublesome optical axis alignment.
Also, Ushio's proprietary sapphire window structure makes possible lamp replacement without interruption.
Compact and lightweight.
You can select a broad range of wavelengths.
Rupture resistant sapphire window adopted.
Safe and reliable Japanese quality
Integrated mirror eliminates need for optical axis alignment

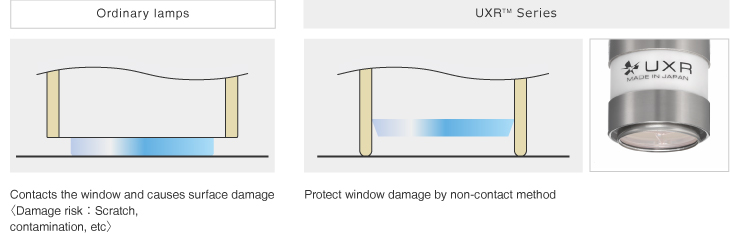

Adopted "Dirt/scratch preventing construction" that makes possible lamp replacement via Ushio's proprietary window structure
UXR-300BF major specifications
| Basic characteristics (initial electrical characteristics) | Lamp input | 300W | |
|---|---|---|---|
| Rated lamp voltage*1 | 15V | ||
| Rated lamp current | 20A | ||
| Current range | 18 to 21 A | ||
| Specifications | Electrode gap distance | 1.5 mm | |
| Wavelength type | Ozoneless | ||
| Exit window diameter | dia. 25.4 | ||
| Mirror shape | Parabolic | ||
| Rated lifespan*3 | 500 hours | ||
| Initial irradiance intensity*2 | Total irradiation output | 50W | |
| Overall luminous flux | 4500 Lm | ||
| Luminous flux through 5 mm aperture | 1830 Lm | ||
| Color temperature | 6100K | ||
| Usage requirements (power supply) | Power supply type | Constant current control/Constant power control | |
| Allowable current ripple (P-P) | 5% or less | ||
| Ignitor output | 23 kV AC or greater | ||
| Possible supply voltage | 140 V or greater | ||
| Usage requirements (lamp) | Lighting direction | Horizontal lighting | |
| Cooling requirements | Ceramic components | 150℃ or lower | |
| Metal components | 200℃ or lower | ||
| Forced air cooling | Required | ||
*2 Result when operating at 20 A.
*3 When the luminous flux through a 5 mm aperture reaches 50% of the initial value.
