Product and Technology Ushio begins production of new single-mode 670nm laser diodes
2020.07.29
Ushio Inc. has begun the mass production of HL67191MG and HL67192MG, offering two new laser diodes (LDs) for operation at the 670nm wavelength.
Providing output powers of 15mW (CW) and 30mW (pulsed), these single-mode LDs deliver high-temperature performance (up to 70°C) within a compact φ5.6mm can package. Both LDs achieve a low operating current of 30mA at 25°C (15mW in CW operation) and feature built-in monitoring photodiodes, creating high-reliability, cost-efficient devices ideal for battery-powered sensing and measuring equipment.
Features of HL67191MG and HL67192MG
■ Details
・Optical output power: 15mW (CW), 30mW (pulse)
・Visible lasing: 670nm
・Operating temperature: 70ºC max.
・Low operating current: 30mA(25℃,15mW,CW)
・Single transverse mode
・TE mode oscillation
・Small package: φ5.6mm can
・Built-in monitoring photodiodes
■ Applications
・Bar-code reading
・Measurement
・Sensing
■ Packaging
Ushio standard φ5.6mm package; two internal circuits available
| Product image | HL67191MG | HL67192MG |
 |
|
|

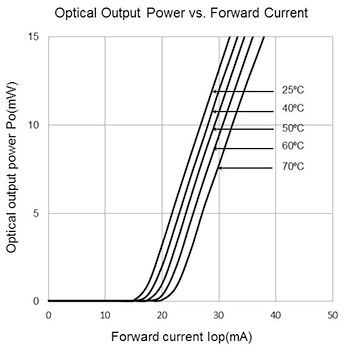

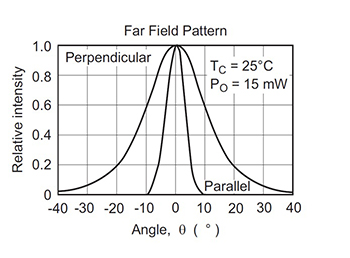

■ Typical Characteristic Curve
 |
 |
