Basic Model
Optical Modulex is recommended as an inspection light source by ' Optical Glass Manufacturers Association of Japan '. Basic model of Optical Modulex series adopted suitable optical system for inspection.
Inspection Type
- Direct-Viewing Type
- Inspection is carried out by direct viewing while changing the angle of the illuminated surface of the object. Inspection of unpermeable materials is possible, as well as permeable materials such as glass.
- Projection Type
- Light is applied to the object to be inspected through material such as glass or film, and the image projected on a screen is visually examined for inspection.
- Reflecting Projection Type
- Light reflected from surfaces such as mirrors, aluminum plate, and copper plate is projected on a screen, and the projected image is visually inspected. Able to inspect surface scratches and contaminants or polishing irregularities.
Features
- 1Optical Modulex series, wide variety of products adopted suitable optical system for inspection. *1
- 2It is recommended as an inspection light source by Optical Glass Manufacturers Association of Japan.
- 315-year record of performance in lens and glass inspection field.
- 4The image is projected at actual size, so suited for inspection relatively large defects.
- 5Enable to inspect defects of permeable resins such as glass, lens, films by direct-visual or projected type. For highly reflective surfaces such as mirrors and aluminum or copper plates, reflecting projection type is appropriate.
*1. Optical Modulex series
Set Contents
Lamp House
Power Supply
Lamp
Lamp Description
- Super High-pressure UV Lamp
- USHIO super high-pressure UV lamps have been developed to effectively utilize three ultraviolet wavelengths (436, 405 and 365 nm) as high-intensity light sources with stable irradiance and long life.

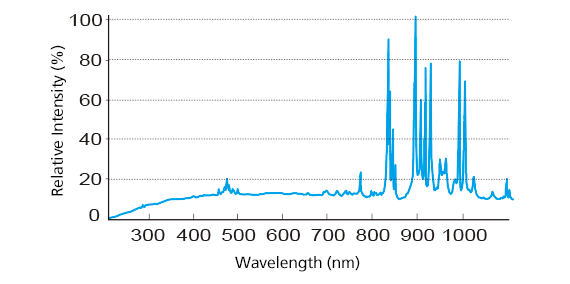

- Xenon Short Arc Lamp
- Xenon short arc lamps are high-intensity point light sources filled with xenon gas developed by USHIO provides broad spectrum, from visible to infrared range, which is similar to daylight.
Specifications
| Model | OPM2-252HGC | OPM2-502HGC | OPM2-502XGC |
|---|---|---|---|
| Set contents | Lamp house, power supply and lamp | Lamp house, power supply and lamp | Lamp house, power supply and lamp |
| Center Irradiance (at 1000 mm) | 1800lx | 3600lx | 2200lx |
| Effective Illumination Area (at 1000 mm) | φ300 mm | φ300 mm | φ300 mm |
| Center Irradiance (at 1500 mm) | 850lx | 1700lx | 1050lx |
| Effective Illumination Area (at 1500 mm) | φ500 mm | φ500 mm | φ500 mm |
| Lamp Deacription | Super High-pressure UV lamp USH-250SC2 |
Super High-pressure UV lamp USH-500SC2 |
Xenon short arc lamp UXL-500SX2 |
| Lamp Power | 250 W | 500 W | 500 W |
| Expected Lamp Life *Not warranty hours. |
1000 hours | 800 hours | 1500 hours |
| Dimensions (Lamp House) | 150W × 320D × 230H | 150W × 320D × 230H | 150W × 320D × 230H |
| Power Supply Model | BA-H252 | BA-H502 | BA-X502 |
| Dimensions (Power Supply) | 222W × 230D × 215.5H | 222W × 230D × 215.5H | 222W × 230D × 215.5H |
| Input (Power Supply) | 100 V AC, 50/60 Hz | 100 V AC, 50/60 Hz | 100 V AC, 50/60 Hz |
| 500 VA | 1000 VA | 1000 VA | |
| Output (Power Supply) | 40V DC, 6.25 A | 57V DC, 9A | 20V DC, 25A |
* Check here if using older model UI lighting.
Appearance
Lamp House
Power Supply
