5050 SMD High Power LEDSMBB Faimily(SMD 5050 Package)

SMBB family is the flagship model of the USHIO epitex series and is available in 1 mm x 1 mm square high power chips with wavelengths from 365 nm to 1650 nm in 1 to 3 chips.
It is a versatile package of 5 mm x 5 mm each, which can be mounted at the same or multiple wavelengths. Various types of lenses are also available, including narrow viewing angle 02 lenses.

Click the dimensional drawing to enlarge the external dimensions.

Flat Lens 02 Lens 03 Lens 05 Lens
Outer
Dimension

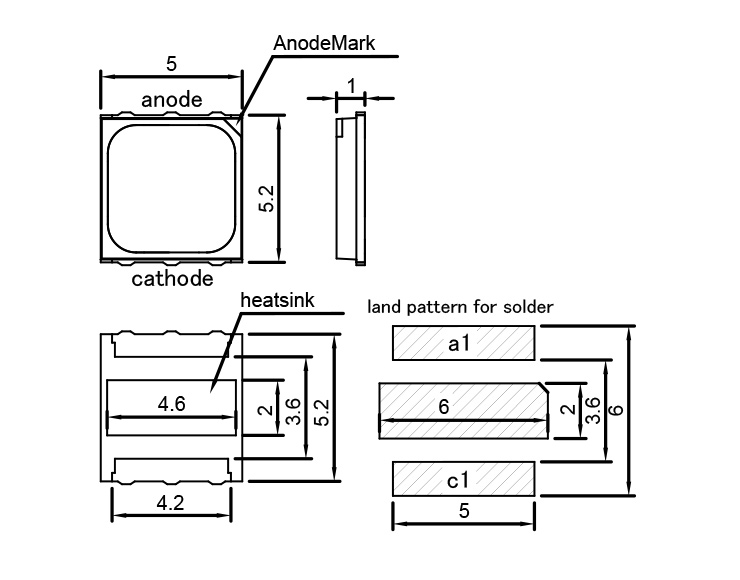

Outer Dimention(Fllat Lens)
Outer Dimention(02 Lens)
Outer Dimention(03 Lens)
Outer Dimention(05 Lens)
Image(Fllat Lens)
Image(02 Lens)
Image(03 Lens)
Image(05 Lens)
Radiation
Characteristics
Radiation<br>Characteristics(Fllat Lens)
Radiation<br>Characteristics(02 Lens)
Radiation<br>Characteristics(03 Lens)
Radiation<br>Characteristics(05 Lens)
3D Data

Download

Download

Download

Download

Parts Numbering

Parts Numbering

(a) SMBB : Package Family Name
(b) 850 : Peak Wavelength. (unit:nm. From 365nm to 1,650nm)
(c) DS : Structure Type of LED Chips (Unselectable Option)
(d) 1 : Number of Chips (1: 1 Chip, 2: 2 Chips, 3: 3 Chips)
(e) 100 : LED Chip Dimension (100: 1,000um * 1,000um, 130: 1,300um * 1,300um)
(f) S : Suffix for Multi LED Chips Lamp represents Internal Circuit Type. (S: Series Circuit)
(g) -02 : Lens Type. (none: Flat Type, -02: 02 Lens, -03: 03 Lens, -05: 05 Lens.)
(h) Z : with Zener diode. (Option)
(i) -I : with Ceramics Insulator. (Option for Multi Chips Lamp)
