USHIO Begins Marketing Nano-Imprint VUV Ashing System “CHiPs”

Incorporated into Nano-Imprint Lithography Equipment, CHiPs Allows
Non-contact and Damage-free Removal of Photoresist Residue from Templates

USHIO INC. (TOKYO:6925)(Headquarters: Tokyo, Japan; President and CEO: Shiro Sugata; "USHIO" ), today announced that the company plans to start marketing the nano-imprint VUV (Vacuum Ultra Violet) ashing system "CHiPs (Compact HiPower System)" on March 1, 2011. Incorporated into the nano-imprint lithography (NIL) system to be used for fabricating circuit patterns of a variety of devices including LEDs, MEMS, functional films, and biochips, the CHiPs allows non-contact and damage-free cleaning, surface improvement, and ashing of templates and workpieces.

NIL is a lithography technology that transfers a circuit pattern by directly imprinting a template (or mold) with the circuit pattern on a workpiece (a resist-coated silicon, sapphire, or film substrate). It has the advantage of being a low-cost process, allowing large-area pattern transfer, and being suitable for mass-production. NIL already has been put into practical use for fabricating circuit patterns with a line width at a micro-meter (µm) level. NIL has evolved with further research and development efforts to establish a finer-pattern process technology at a nano-meter (nm) level.

Today, the NIL process faces the following challenges caused by putting a workpiece into contact with a template, and they are becoming obstacles for fabricating finer patterns as well as enhancing productivity:

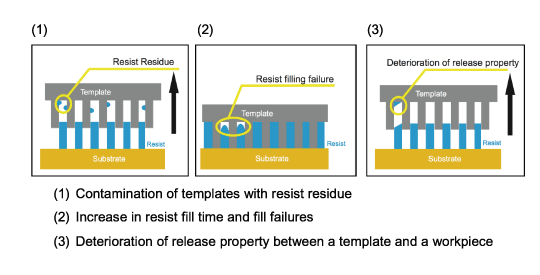

Challenges for NIL:
1.Contamination of templates with resist residue
2.Increase in resist fill time and fill failures
3.Deterioration of release property between a template and a workpiece

Problems in Conventional Solutions
Wet- or dry-cleaning equipment needs to be separately installed to clean the templates used for a certain number of process cycles by removing them from the NIL system. This causes downtime, thus lowering the productivity. Also, the wet-cleaning equipment has some disadvantages: it has an insufficient cleaning capability, causes a risk of generating chemical residue, and requires additional processes (such as drying and waste disposal). The dry-cleaning equipment using plasma, meanwhile, has disadvantages in that it causes damage to a workpiece and requires additional components (such as a vacuum chamber).

Solutions by CHiPs
In order to meet these challenges, USHIO successfully developed its new nano-imprint VUV ashing system “CHiPs” by applying and optimizing its lighting-edge technologies to NIL to achieve non-contact and damage-free high cleaning power using VUV light. In addition, the CHiPs can be incorporated into the NIL equipment to allow a reduction of the downtime of the NIL equipment as well as automation of the NIL process-thus enhancing the productivity and yield and thereby lowering the CoO of the NIL process.

USHIO will exhibit and participate in the "SPIE Advanced Lithography 2011" conference, to be held on February 27 (Sun.) through March 3 (Thu.), 2011, at the San Jose Convention Center and San Jose Marriot (Headquarters Hotel) in San Jose, California, USA (Booth No. 428).

USHIO will strive to work on providing lighting-edge solutions for a variety of challenges in processing of finer patterns of various devices.

1.Removal of resist residue from templates
2.Shortening of the resist refill time and enhancement of the filling property with hydrophilization*
3.Enhancement of the release property between a template and a workpiece
4.Ashing of resist residue on a workpiece
*Hydrophilization indicates that water or liquid does not become a droplet but spreads out so that the contact angle of a liquid becomes close to 0° when it is dropped.

1.Use of VUV light allows a high-power, non-contact, and damage-free cleaning process.
2.The compact built-in design is suited for low-temperature processes (to the enable NIL process to be automated).
3.Neither an additional component for the wet-cleaning method nor a vacuum component for the dry-cleaning method is required.

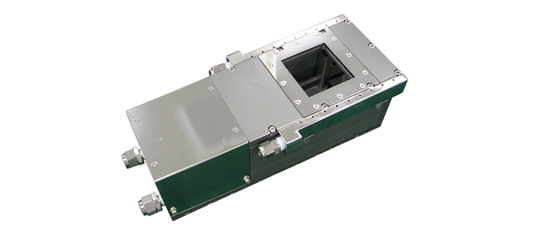

Main Unit:100 mm (W) x 300 mm (D) x 80 mm (H)
