Full-field projection aligner UX-4 Series
  • Litho-Patterning
  • MEMS, Electronic Components
  • Semiconductors
  • Liquid Crystal Display
  • Printed Circuit Board and PKG

This projection aligner uses our unique large area projector lens technology, light source and other optical technologies developed by Ushio over many years. Provides one-shot exposure of up to 8-inch wafers without touching the mask. Large depth of field enables proper exposure of non-flat wafers, achieving higher productivity and yield not possible with a proximity aligner.



【Component Technology】

- Includes the world's number one super high-pressure UV lamp

- Our own irradiation optical system boasting a high degree of uniformity

- Unrivaled large-area projector lens

Mask-damage free
High productivity
3-dimensional exposure
Thick-film resist support
Proximity aligner mask diversion possible
MEMS
Crystal oscillators
SAW filters
RF devices
Sensors
Inkjet heads
Diodes
IGBT
Power semiconductors
Thyristors
MOS-FETs
LEDs
Power amps
MMICs
BAW filters
Acceleration sensors
Inductors
Passive components
Solar cells and more

Spray coater
This spray coater can apply resist coating over unevenly shaped substrates (3-D structures) that conventional spin coaters could not. (Product co-developed with Toyota Technological Institute Professor Sasaki, and VIC International Ltd.)

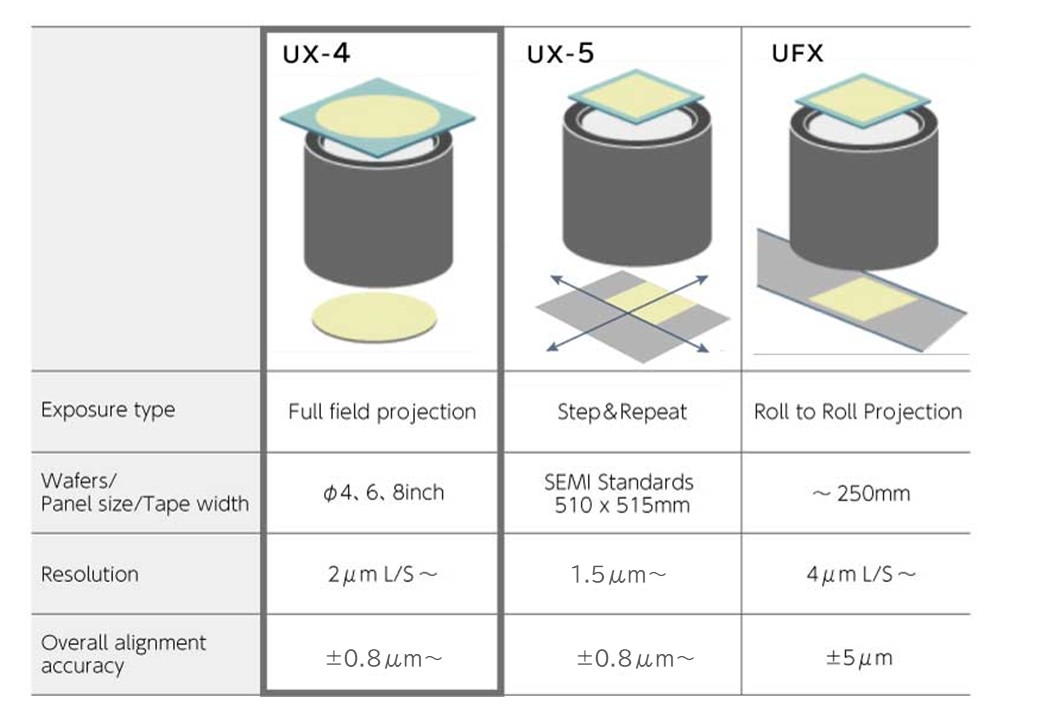

Model list

Installed light source
